Made of stainless steel, polished
Multifunction thread pitch identify
Quick to use, very accurate and convenient sizes

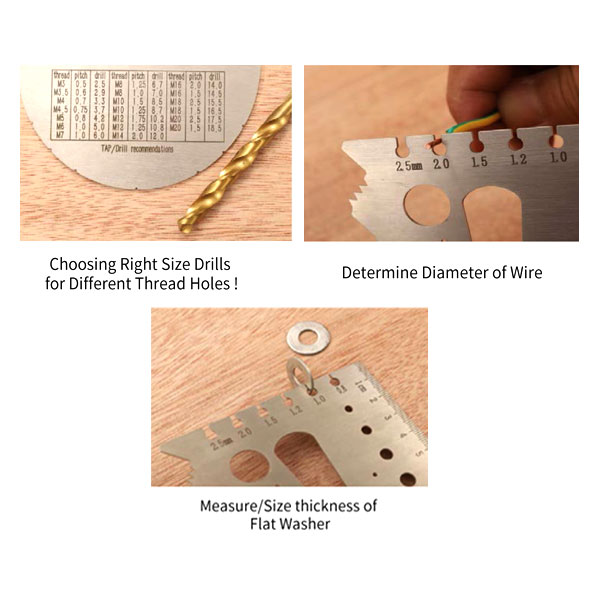

Identify the size of bolt, determine taps before tapping and checking thickness of washer and diameter of electric wire, marking line, measuring angle etc.
Taper for measure inner diameter to tubing, hole size, slot width and flange face to face dimensions.
|

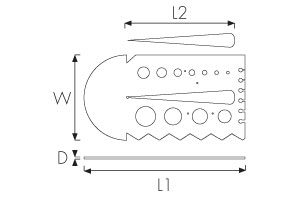

CODE |
L1 (MM) |
L2 (MM) |
W (MM) |
D (MM) |
N.W (G) |
PCS (BOX) |
|
64- DMG55 |
170 |
110 |
90 |
1.25 |
142 |
10 |
| SIZES | |
| Pitches | 0.5, 0.7, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0mm |
| Bolt Screw Diameter | M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20 |
| Wire Gauge | 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm |
| Angle | 0 – 180° |
| Square | 15°, 30°, 45°, 60°, 90° |
| Ruler | 1 – 10cm |
|
CODE |
L1 (MM) |
L2 (MM) |
W (MM) |
D (MM) |
N.W (G) |
PCS (BOX) |
|
64- DMG55 |
170 |
110 |
90 |
1.25 |
142 |
10 |
| SIZES | |
| Pitches | 0.5, 0.7, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0mm |
| Bolt Screw Diameter | M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20 |
| Wire Gauge | 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm |
| Angle | 0 – 180° |
| Square | 15°, 30°, 45°, 60°, 90° |
| Ruler | 1 – 10cm |
