Forged steel, nickel and chromium plated
Reduces ratchet lash
Maximum permissible deviation 4% is maintained
Locking micrometer torque adjustment, non-slip knurled grip
High precision tool, used to tighten a bolt with an established torque value
Ideal for quality control on automotive maintenance, industrial assembling lines, laboratories, research departments and other application that require high precision on the applied torque
|

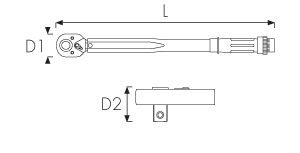

CODE |
SIZE (IN.) |
D1 (MM) |
D2 (MM) |
L (IN.) |
PCS (BOX) |
|
61- TW148 |
1/4 |
28 |
20 |
12 |
1 |
|
61- TW149 |
3/8 |
37 |
28 |
15 |
1 |
|
61- TW210 |
1/2 |
47 |
33 |
22 |
1 |
|
61- TW210A |
3/4 |
72 |
52 |
34 |
1 |
|
SCALE DIVISION |
TORQUE RANGE FROM |
| 6 – 30nm | 4.4 – 22.1 ft/lb |
| 19 – 110nm | 14.0 – 81.1 ft/lb |
| 40 – 210nm | 29.5 – 154.9 ft/lb |
| 100 – 500nm | 73.8 – 368.8 ft/lb |
|
CODE |
SIZE (IN.) |
D1 (MM) |
D2 (MM) |
L (IN.) |
PCS (BOX) |
|
61- TW148 |
1/4 |
28 |
20 |
12 |
1 |
|
61- TW149 |
3/8 |
37 |
28 |
15 |
1 |
|
61- TW210 |
1/2 |
47 |
33 |
22 |
1 |
|
61- TW210A |
3/4 |
72 |
52 |
34 |
1 |
|
SCALE DIVISION |
TORQUE RANGE FROM |
| 6 – 30nm | 4.4 – 22.1 ft/lb |
| 19 – 110nm | 14.0 – 81.1 ft/lb |
| 40 – 210nm | 29.5 – 154.9 ft/lb |
| 100 – 500nm | 73.8 – 368.8 ft/lb |
Download our products catalogue now for more information about the products.
