Made of hardened chrome vanadium steel
Heat-treated and plating finish

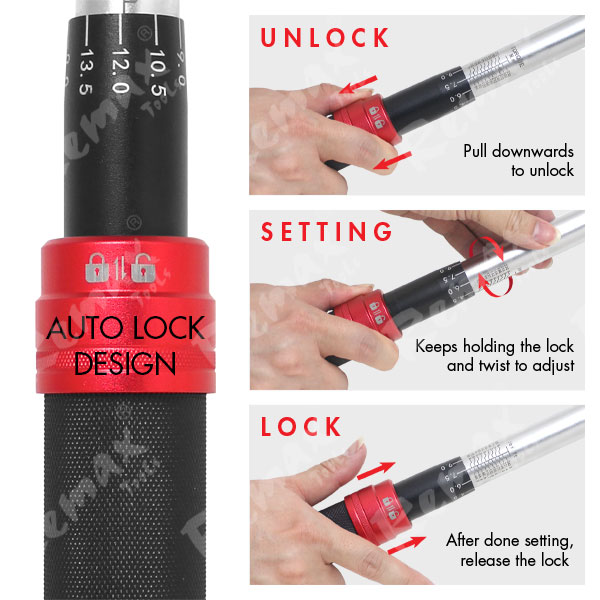

Automatic torque lock design

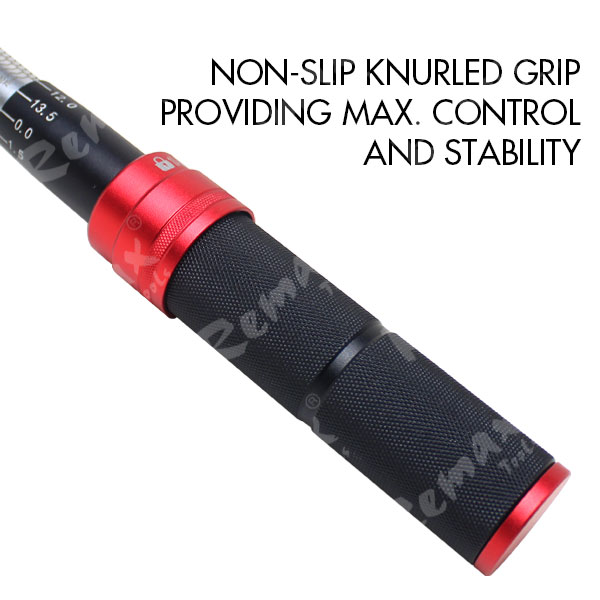

Non-slip knurled grip
High precision tool, used to tighten a bolt with an established torque value
Ideal for quality control on automotive maintenance and other application that requires high precision on the applied torque

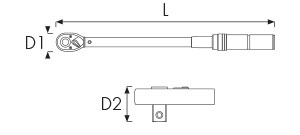

| CODE |
SIZE (IN.) |
D1 (MM) |
D2 (MM) |
L (IN.) |
N.W. (G) |
PCS (CTN) |
| 61- TW312 | 1/4 | 28 | 24 | 9.5 | 415 | 18 |
| 61- TW313 | 3/8 | 33 | 33 | 16.0 | 1190 | 6 |
| 61- TW310 | 1/2 | 41 | 41 | 22.0 | 1710 | 6 |
| CODE | TEETH | SCALE DIVISION | TORQUE RANGE FROM |
| 61- TW312 | 72T | 5 — 25nm | |
| 61- TW313 | 72T | 10 — 120nm | |
| 61- TW310 | 72T | 60 — 330nm | 44.3 — 243.5 ft/lb |
| CODE |
SIZE (IN.) |
D1 (MM) |
D2 (MM) |
L (IN.) |
N.W. (G) |
PCS (CTN) |
| 61- TW312 | 1/4 | 28 | 24 | 9.5 | 415 | 18 |
| 61- TW313 | 3/8 | 33 | 33 | 16.0 | 1190 | 6 |
| 61- TW310 | 1/2 | 41 | 41 | 22.0 | 1710 | 6 |
| CODE | TEETH | SCALE DIVISION | TORQUE RANGE FROM |
| 61- TW312 | 72T | 5 — 25nm | |
| 61- TW313 | 72T | 10 — 120nm | |
| 61- TW310 | 72T | 60 — 330nm | 44.3 — 243.5 ft/lb |
Download our products catalogue now for more information about the products.
