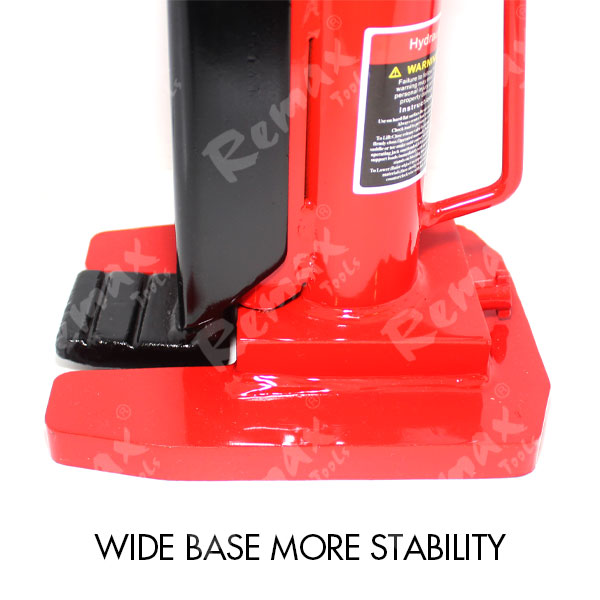

Extra wide base for maximum stability

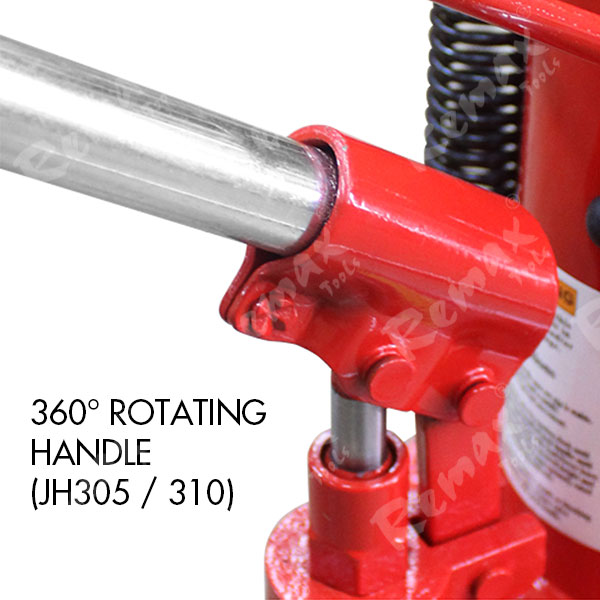

360° handle socket for operation from any direction (JH305 & JH310)

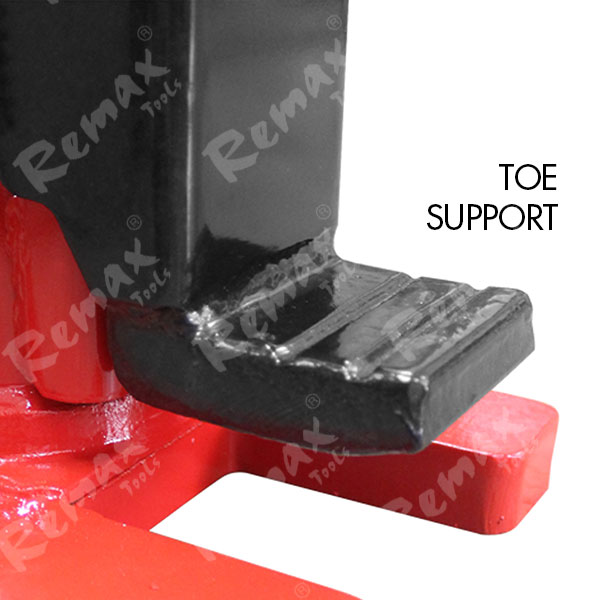

Load can be applied to toe or head
For use where exceptionally low pick-up height is required
For safely lift up your automobile when need to work underneath

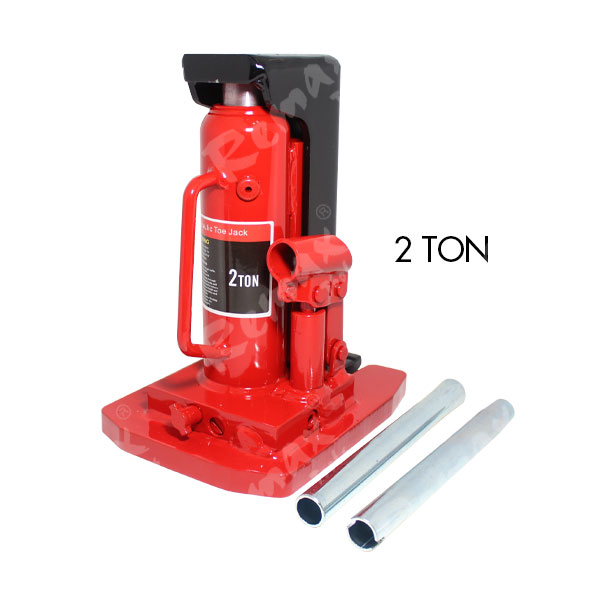

| Code | 77- JH302 | 77- JH305 | 77- JH310 |
| Capacity (Toe) | 2 ton | 5 ton | 10 ton |
| Capacity (Head) | 3 ton | 6 ton | 14 ton |
| Height (Toe) | 15.8 – 128.5mm | 22.2 – 141.3mm | 28.6 – 173.0mm |
| Height (Head) | 238.0 – 349.0mm | 298.5 – 409.5mm | 333.4 – 460.4mm |
| Base | 150 x 188mm | 184 x 270mm | 241.3 x 285.8mm |
| N.W. | 9.5 kg | 22.0 kg | 37.0 kg |
| Set/Ctn | 1 | 1 | 1 |
| Code | 77- JH302 | 77- JH305 | 77- JH310 |
| Capacity (Toe) | 2 ton | 5 ton | 10 ton |
| Capacity (Head) | 3 ton | 6 ton | 14 ton |
| Height (Toe) | 15.8 – 128.5mm | 22.2 – 141.3mm | 28.6 – 173.0mm |
| Height (Head) | 238.0 – 349.0mm | 298.5 – 409.5mm | 333.4 – 460.4mm |
| Base | 150 x 188mm | 184 x 270mm | 241.3 x 285.8mm |
| N.W. | 9.5 kg | 22.0 kg | 37.0 kg |
| Set/Ctn | 1 | 1 | 1 |
