Chrome vanadium steel
Chrome plated, satin

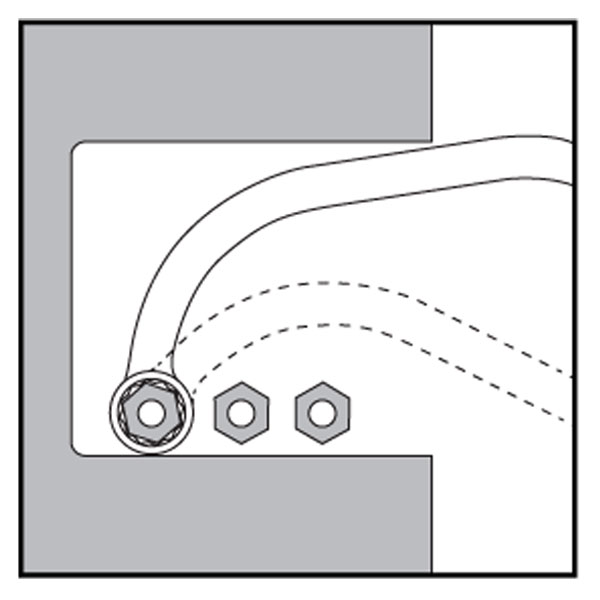

Curved design for maximum access in confined areas

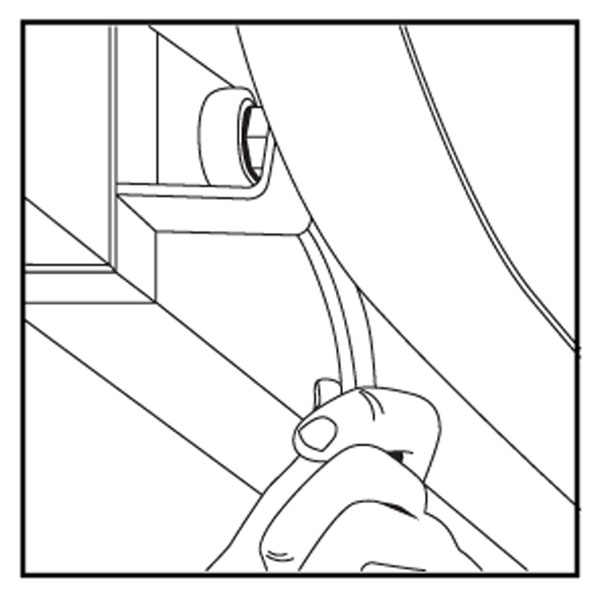

Easy work in tight spaces
Loosening and tightening hexagonal and square bolts and nuts
Used for dismantling of collector tubes, alternators and starters

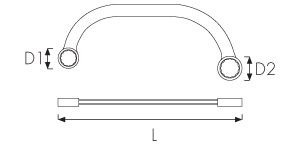

| CODE | SIZE
(MM) |
D1
(MM) |
D2
(MM) |
L
(MM) |
N.W.
(G) |
PCS
(BOX) |
| 61- HM010 | 10 x 12 | 16 | 18 | 143 | 66 | 1 |
| 61- HM011 | 11 x 13 | 19.5 | 22 | 165 | 97 | 1 |
| 61- HM014 | 14 x 17 | 21.5 | 25.5 | 190 | 143 | 1 |
| 61- HM016 | 16 x 18 | 25.5 | 28 | 220 | 175 | 1 |
| 61- HM017 | 17 x 19 | 25.5 | 25 | 220 | 170 | 1 |
| 61- HM019 | 19 x 22 | 29 | 34 | 258 | 275 | 1 |
| CODE | SIZE
(MM) |
D1
(MM) |
D2
(MM) |
L
(MM) |
N.W.
(G) |
PCS
(BOX) |
| 61- HM010 | 10 x 12 | 16 | 18 | 143 | 66 | 1 |
| 61- HM011 | 11 x 13 | 19.5 | 22 | 165 | 97 | 1 |
| 61- HM014 | 14 x 17 | 21.5 | 25.5 | 190 | 143 | 1 |
| 61- HM016 | 16 x 18 | 25.5 | 28 | 220 | 175 | 1 |
| 61- HM017 | 17 x 19 | 25.5 | 25 | 220 | 170 | 1 |
| 61- HM019 | 19 x 22 | 29 | 34 | 258 | 275 | 1 |
