Alloy steel blade, drop-forged adapter
Less effort compound cutting action & adjustable and replaceable jaws
Non slip rubber grips
Cutting ability < HRC 40, GGG-C-740d type II Class 3, 4 standard
For cuts rods, bolts, rivets, bars, and chains

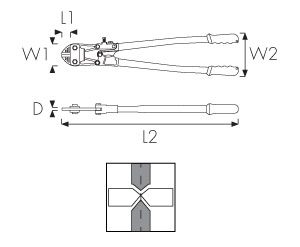

| CODE | W1
(MM) |
W2
(MM) |
L1
(MM) |
L2
(IN. / MM) |
D
(MM) |
N.W.
(KG) |
PCS
(CTN) |
| 40- BC030A | 96 | 175 | 40 | 30 / 760 | 11 | 5 | |
| 40- BC036A | 108 | 170 | 43 | 36 / 910 | 13 | 4 | |
| 40- BC042A | 123 | 205 | 48 | 42 / 1050 | 15 | 8.30 | 4 |
| CODE | GRADE 2
(SOFT BOLT) |
GRADE 5
(HARD BOLT) |
| 40- BC030A | Ø 15/32″ | Ø 5/16″ |
| 40- BC036A | Ø 5/8″ | Ø 7/16″ |
| 40- BC042A | Ø 7/8″ | Ø 5/8″ |
| CODE | W1
(MM) |
W2
(MM) |
L1
(MM) |
L2
(IN. / MM) |
D
(MM) |
N.W.
(KG) |
PCS
(CTN) |
| 40- BC030A | 96 | 175 | 40 | 30 / 760 | 11 | 5 | |
| 40- BC036A | 108 | 170 | 43 | 36 / 910 | 13 | 4 | |
| 40- BC042A | 123 | 205 | 48 | 42 / 1050 | 15 | 8.30 | 4 |
| CODE | GRADE 2
(SOFT BOLT) |
GRADE 5
(HARD BOLT) |
| 40- BC030A | Ø 15/32″ | Ø 5/16″ |
| 40- BC036A | Ø 5/8″ | Ø 7/16″ |
| 40- BC042A | Ø 7/8″ | Ø 5/8″ |
