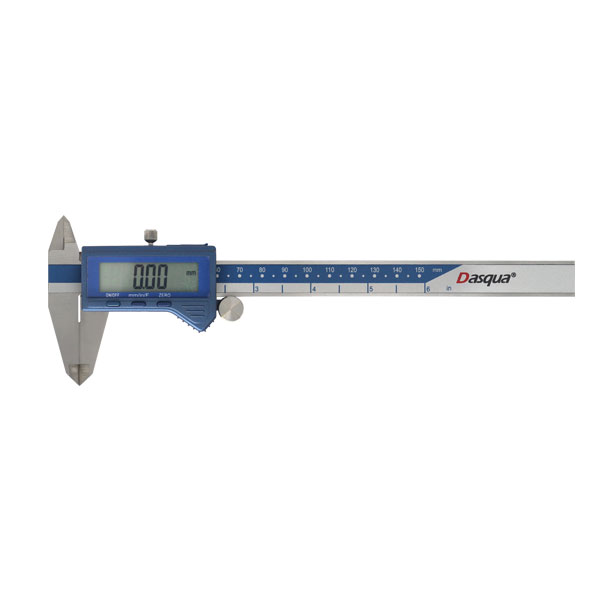

Digital LCD display with metric, Inch, fractional data display
Character height increased to 13mm for improved readability
Made in accordance with DIN862
Silky smooth movement throughout
Hardened, ground & lapped measuring surface
Used to measure the internal or external distance between two objects
|

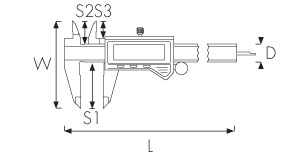

CODE |
L (MM) |
W (MM) |
D (MM) |
S1 (MM) |
S2 (MM) |
S3 (MM) |
N.W. (G) |
PCS (CTN) |
|
64- DDC008 |
285 |
90 |
16 |
50 |
24 |
19 |
557 |
24 |
|
64-DDC012 |
400 |
100 |
16 |
60 |
25 |
20 |
960 |
12 |
|
CODE |
RANGE (MM / INCH) |
RESOLUTION (MM) |
|
64- DDC006 |
150 / 6 |
0.01 |
|
64- DDC008 |
200 / 8 |
0.01 |
|
CODE |
L (MM) |
W (MM) |
D (MM) |
S1 (MM) |
S2 (MM) |
S3 (MM) |
N.W. (G) |
PCS (CTN) |
|
64- DDC008 |
285 |
90 |
16 |
50 |
24 |
19 |
557 |
24 |
|
64-DDC012 |
400 |
100 |
16 |
60 |
25 |
20 |
960 |
12 |
|
CODE |
RANGE (MM / INCH) |
RESOLUTION (MM) |
|
64- DDC006 |
150 / 6 |
0.01 |
|
64- DDC008 |
200 / 8 |
0.01 |
