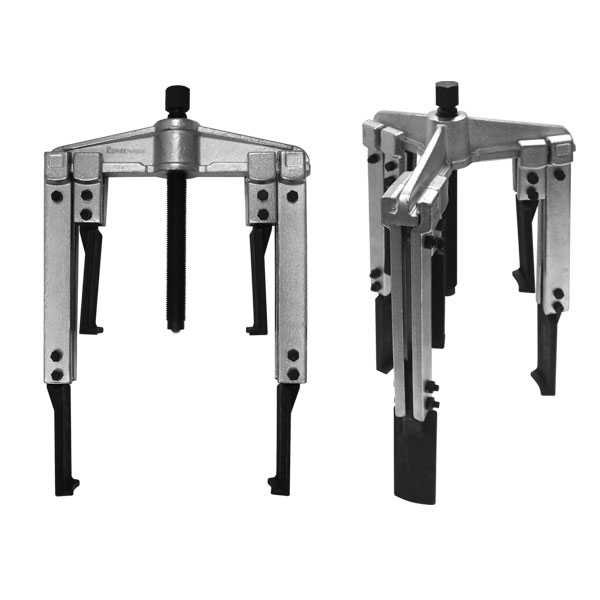

Quick release & best suited for limited access areas
Uniform load distribution and self-centered

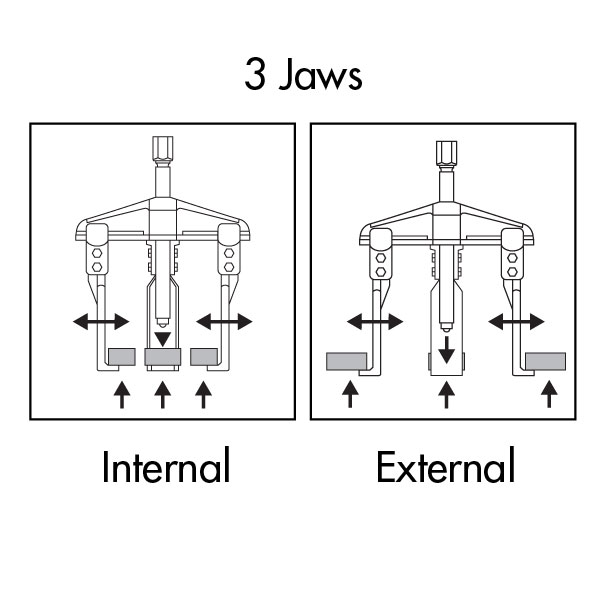

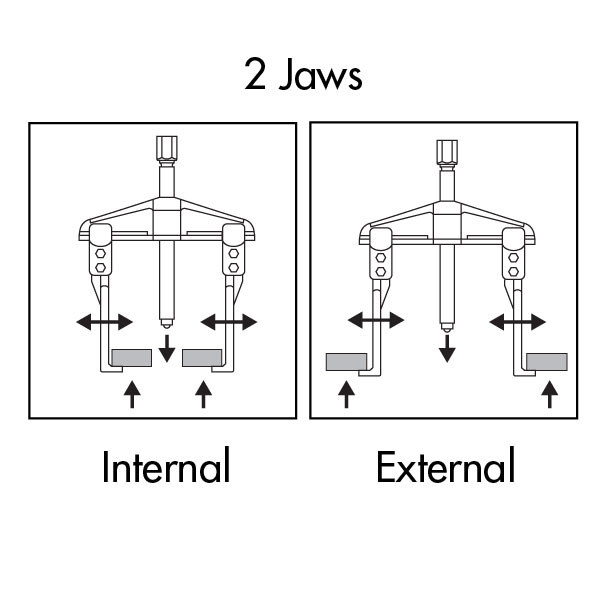

Through reversing the arms internal & external application are possible
Supplied with different leg variants and hydraulic thrust spindle
Extremely robust spindle with inductively hardened thread
To draw out pullers, bush and bearings
| CODE | CONTENT & SPECS | |
| 74- PS004 | Spindle | 245mm (L) x 1pcs |
| 2 Jaw Joint | 260(L) x 50(H)mm x 1pcs | |
| 3 Jaw Joint | 235(L) x 50(H)mm x 1pcs | |
| Short Jaws | 170(L) x 40(W)mm x 3pcs | |
| Long Jaws | 325(L) x 40(W)mm x 3pcs | |
| A | 155 mm | |
| A1 | 300 mm | |
| B | 40 mm | |
| C | 17 mm | |
| D | 5.5 mm | |
| Set (CTN) | 2 | |
| CODE | CONTENT & SPECS | |
| 74- PS004 | Spindle | 245mm (L) x 1pcs |
| 2 Jaw Joint | 260(L) x 50(H)mm x 1pcs | |
| 3 Jaw Joint | 235(L) x 50(H)mm x 1pcs | |
| Short Jaws | 170(L) x 40(W)mm x 3pcs | |
| Long Jaws | 325(L) x 40(W)mm x 3pcs | |
| A | 155 mm | |
| A1 | 300 mm | |
| B | 40 mm | |
| C | 17 mm | |
| D | 5.5 mm | |
| Set (CTN) | 2 | |
Download our products catalogue now for more information about the products.
